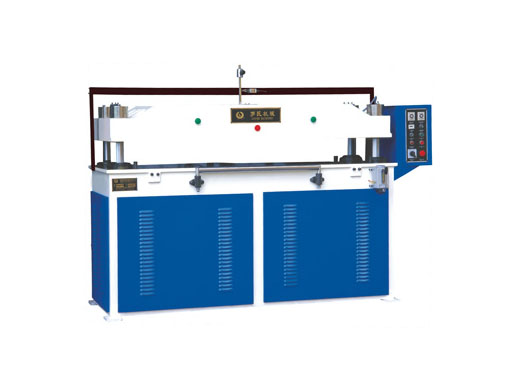

XCLP2-350 hydraulic four-column plane cutting machine
read：9416
| Technical Data: |
| |
|
Maximum momentum |
300KN 350KN 400KN 500KN |
|
Stroke |
125-10mm 125-10mm 125-10mm 125-10mm |
|
Cutting Area |
1600×650mm 1600×650mm 1600×760mm 1600×960mm |
|
Power |
2.2kw 2.2kw 3kw5.5kw |
|
Dimension |
2300×760×1300mm 2300×760×1300mm
2300×870×1300mm 2300×1100×1350mm |
|
N.W |
2100kg 2500kg 2800kg 3500kg | |
| |
| |
| |
| Application: |
| |
| The machine is applicable for cutting operation for paperboard,textile,leather,forming materials,plastic materials,rubber,floor and carpet etc.industries by die cutter. |
| |
| |
| |
| Features: |
| |
- The upward and downward movement of pressing board adopts four steel columns with better stability,which can guarantee the parallelism of upper and lower surfaces.
- Four columns and guide covers adopt self-lubricating system ,which improves the service life of machine.
- Double oil cylinder and double pulling rod transmission structure are service life of machine.
- The whole machine completely adopts special bearings except the guide covers of columns,so there is no abrasion and the working time of machine parts is prolonged.
- The punching force and effective punching area can be made according to customer requirements.
|
