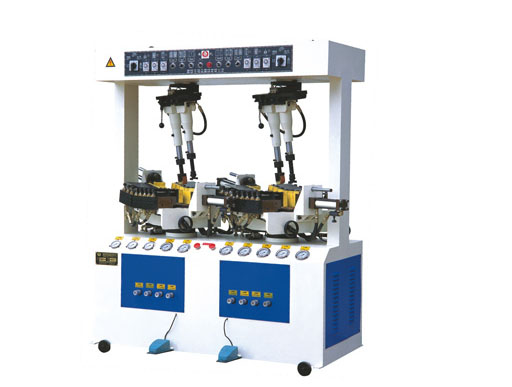

XYHQ-Y gantry oil hydraulic walled sole attaching machine
read：10310
| Technical Data: |
| |
|
Dimension |
L1810×W900×H880 mm |
|
Power |
2.2 kw |
|
Pneumatic pressure |
20-50 kgf/cm2 |
|
N·W |
1430 kg |
|
Capability |
2000 pair/8hr. | |
| |
| |
| |
| Features: |
| |
- The machine adopts complete oil pressure design. Sole attaching, side pressing and front and back pressing can be completed simultaneously or individually with high force and firm bonding. It is applicable for flat-bottomed shoes, tennis shoes, jogging shoes and other edge-wrapping or toe-wrapping shoes.
- The rubber molds for front and back pressing and side pressing are specially designed, which are applicable for various shoes and the shape of heel requires no adjustment.
- The side presser adopts automatic balancing memorized forming design, which makes that the shoe sole and shoe surface tightly are bonded without any interval.
- The sole attaching machine adopts the design of adjustable warping degree of shoes, which enhances the bonding degree shoe sole.
- The pressing rod mechanism can automatically sway and locate to make the shoes easily taken and put. For the pressing of shoes of different sizes, there is no need to adjust the height of front or back foot bar, which is easy to operate.
|
